- ELK Stack & Docker -

Dan Clarke

https://www.danclarke.com

@dracan

Independent Developer / Contractor

ELK Stack

Agenda

  • ELK Stack Overview
  • Docker and Containers (with demo)
  • Serilog
  • ELK Demo

ELK Stack

Elastic Search

Logstash

Logstash

Logstash

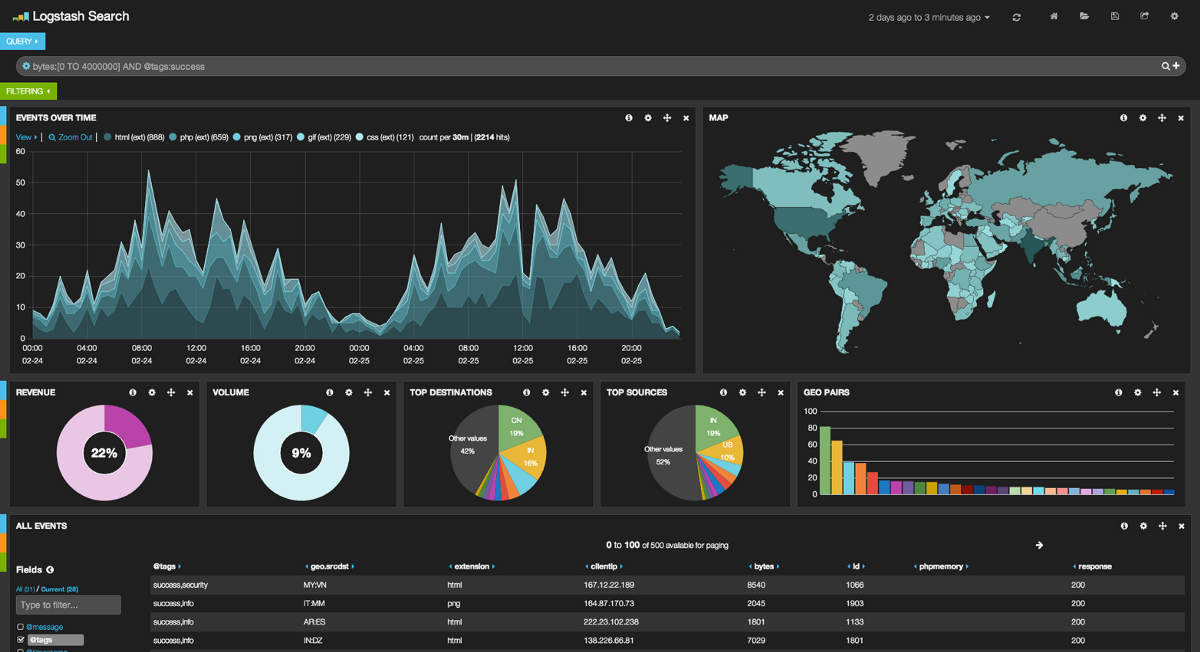

Kibana

Docker

Containers

  • Lightweight
  • Disposable
  • Seconds to spin up / tear down
  • Lifetime is a single process
  • Self contained
  • Individually deployable / scalable

Images

  • Template for containers
  • Quite big really!
  • Layered
  • Cached (per layer)

Docker Hub

Dockerfile


                        FROM microsoft/aspnetcore
                        WORKDIR /app
                        COPY . .
                        EXPOSE 80
                        ENTRYPOINT dotnet dockertest.dll


                        FROM microsoft/aspnetcore
                        WORKDIR /app
                        COPY . .
                        EXPOSE 80
                        ENTRYPOINT dotnet myapp.dll


                        FROM ubuntu:14.04
                        RUN apt-get update
                        RUN apt-get install -y curl
                        ...


                        FROM ubuntu:14.04
                        RUN apt-get update && apt-get install -y curl
                        ...


Docker CLI


                        docker build . -t <tagname>


                        docker run -p 1234:80 <image_name>


                        docker start <container_name>
                        docker stop <container_name>
                        docker rm <container_name>
                        docker kill <container_name>


                        docker ps -all


                        CONTAINER ID        IMAGE               COMMAND                  CREATED              STATUS              PORTS                    NAMES
                        e8f3c41b8d2c        dockerelk_kibana    "/bin/bash /usr/lo..."   About a minute ago   Up About a minute   0.0.0.0:5601->5601/tcp   dockerelk_kibana_1


                        docker push
                        docker pull


Docker Compose


                        version: '3'
                        services:
                            web:
                                build: .
                                ports:
                                    - "1234:80"
                            api:
                                image: "MyApi"
                                ports:
                                    - "5001:80"
                            mongodb:
                                image: "mongo"
                            redis:
                                image: "redis"



CLI Examples


                        docker-compose up
                        docker-compose down
                        docker-compose build
                        docker-compose push
                        docker-compose pull


Docker Demo

Serilog


                        var obj = new
                        {
                            a = "hello",
                            b = 456
                        };

                        var num = 57;

                        Log.Information("Object: {@obj}, num = {num}", obj, num);



                        09:14:22 [Information] Object: { a: hello, b: 456 }, num = 57


                        Log.Logger = new LoggerConfiguration()
                            .MinimumLevel.Debug()
                            .WriteTo.LiterateConsole()
                            .CreateLogger();


                        Log.Logger = new LoggerConfiguration()
                            .WriteTo.Elasticsearch(
                                new ElasticsearchSinkOptions(
                                    new Uri("http://localhost:9200"))
                            {
                                AutoRegisterTemplate = true,
                            }).CreateLogger();


DEMO TIME!

Summary

What have we done?

  • Quickly created an MVC app using the dotnet CLI
  • Dockerized project using vscode tooling
  • Built a release image and pushed to Docker Hub
  • Updated the image adding Serilog support
  • Very quickly spun up the ELK Stack with Docker
  • Created dashboard with graph plotted from LINQPad and logs from our Dockerized MVC app

Preempted Questions...

Would you actually use Serilog for metrics in the real world?

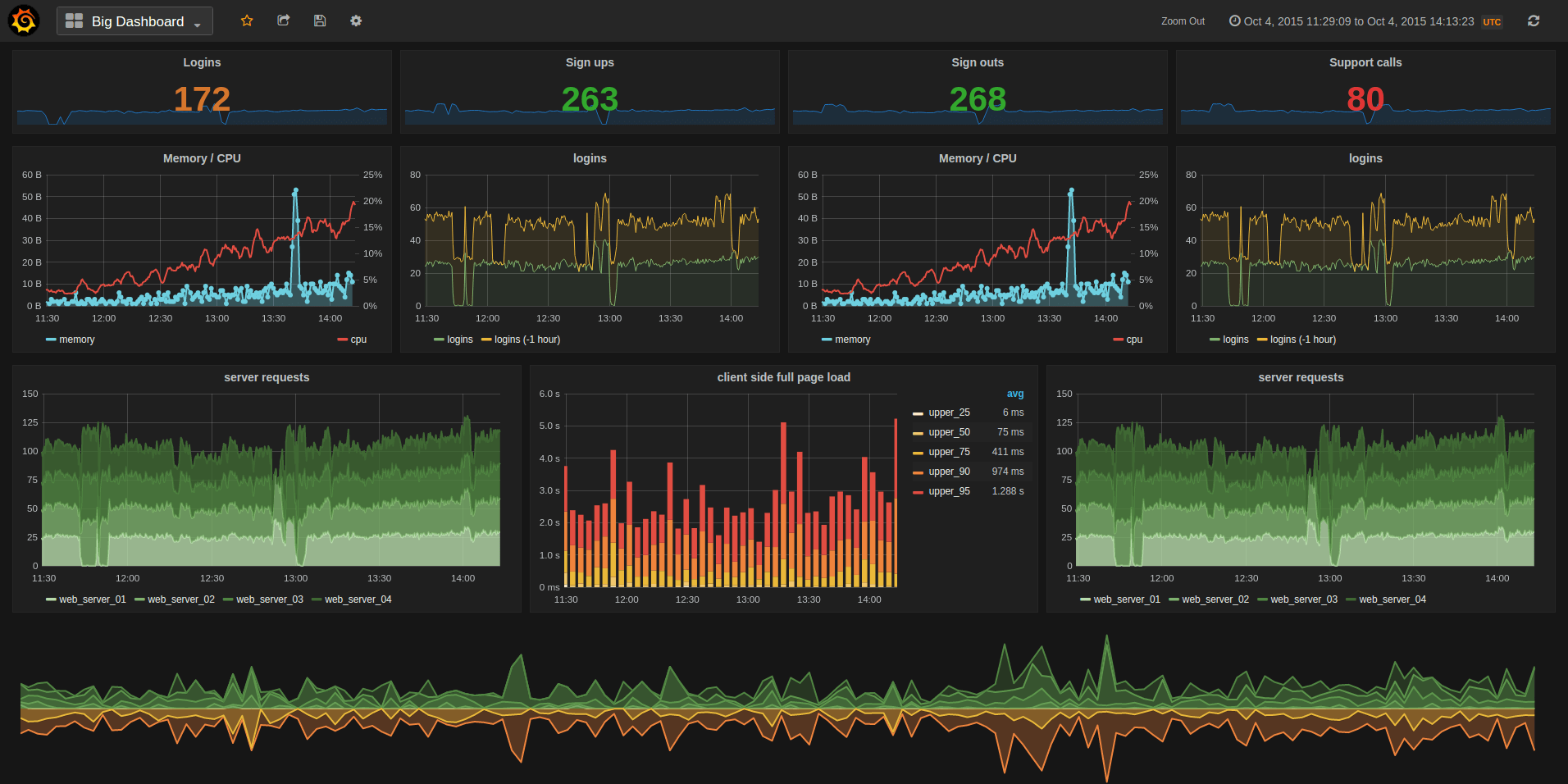

How does this compare to Grafana?
